9. Simulation Controls
In Simulation Controls we can control the numerical behaviour of the solution. Main settings details with specifying the simulation title, unit system, geometry type, etc. Step and stopping controls are used to specify the time step, the total number of steps and the criteria used to terminate the simulation. Processing conditions like the environment temperature, convection coefficient can be specified under Processing conditions. Certain advanced features are explained in the Advanced controls section.
(a)
(b)

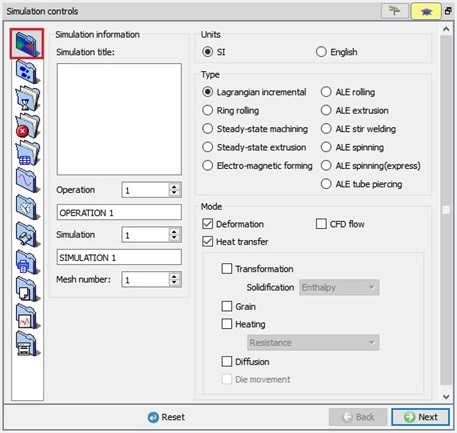

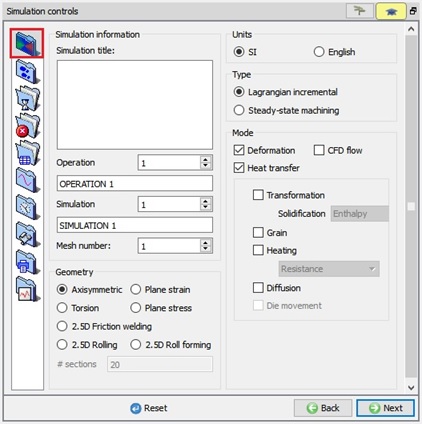

Simulation controls Main window;(a) For 2D and (b) For 3D
