POISON
| (Material data) |
|---|
| Last updated on : 09-08-2013 |
POISON Material, Ftype, Poisson or POISON Material, Ftype, Ndata
Temp(1) Poison(1)
Temp(Ndata) Poisson(Ndata)
Or
POISON Material, Ftype, N1, N2, or value Temp (1) .. Temp (Ndata)
Atom (1) .. Atom(Ndata)
Poisson(1) .. Poisson(Ndata)
OPERAND | DESCRIPTION | DEFAULT
—|—|—
Material | Material number | None
Ftype | Function type: 0 = Constant Poisson’s ratio 1 = Temperature dependent Poisson’s ratio 2 = Density dependent Poisson’s ratio () 3 = Atom dependent Poisson’s ratio () 4 = Temperature and Atom dependent Poisson’s ratio () | None
Poisson | Poisson’s ratio | None
N1 | Number of data pairs for the function or temp data When method=4 is selected |
N2 | Number of atom data for method=4 |
Ndata | Number of data | None
Temp(i) | Temperature of ith data pair | None
Poisson(i) | Poisson’s ratio of ith data pair | None
Atom(i) | Atom concentration ith data pair | None
Density(i) | Density of ith data | None
() denotes that the function type can only be used in the Microstructure Module.
REMARKS

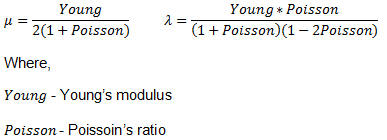

The Poisson’s ratio may be specified as a constant value or specified as a set of temperature/Poisson’s ration data pairs. If Ftype = 0 use the operand Poisson. If Ftype = 1 use the operands Ndata, Temp(i), Poisson(i). Each temperature/Poisson’s ratio pair should be provided on a separate line. When temperatures lie within the specified data range, linear interpolation is used to determine the corresponding Poisson’s ratio. When temperatures lie outside the specified data range, linear extrapolation is used to determine the corresponding Poisson’s ratio. If Ftype = 2 use the operands N1 and Density (i). If Ftype = 3 use the operands N1, and Atom(i). It should be noted that the atom variable refers to the weight percent of solute in the material. If Ftype = 4 use the operands N1, N2, Temp (i), Atom (i). Poisson’s ratio and Young’s modulus are needed to obtain the Lame’s constants
and
. |
|
—|—
Applicable Simulation Modules: Deformation, Microstructure
Applicable Simulation Modes: Deformation
Applicable object types: Elastic, Elastoplastic
