9.9. Thermomechanical variables

Using Thermomechanical variables ( Fig. 9.9.1.) option user can calculate the time contours, heating or cooling rate. User can also define multiple sets of time-temperature variables.

Following are list of variables:

Time between two temperatures
Reciprocal of Cooling/heating rate between two temperature
Time to reach a temperature (heating)
Time to reach a temperature (cooling)
Time from a temperature to end (heating)
Time from a temperature to end (cooling)
Exceedance Curve number
Strain above a temperature
Strain below a temperature
Strain above a strain rate

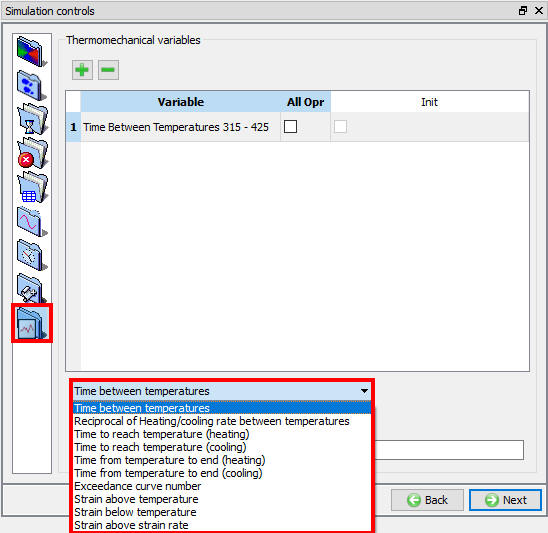

Thermomechanical variables window
