Creating a New problem

On a Windows machine , go to the button select DEFORM-v1x.xxx (.xxx indicates version number E.g. v14.0.2) and select DEFORM GUI Main vxx.xx from the menu. The DEFORM GUI Main window will appear.

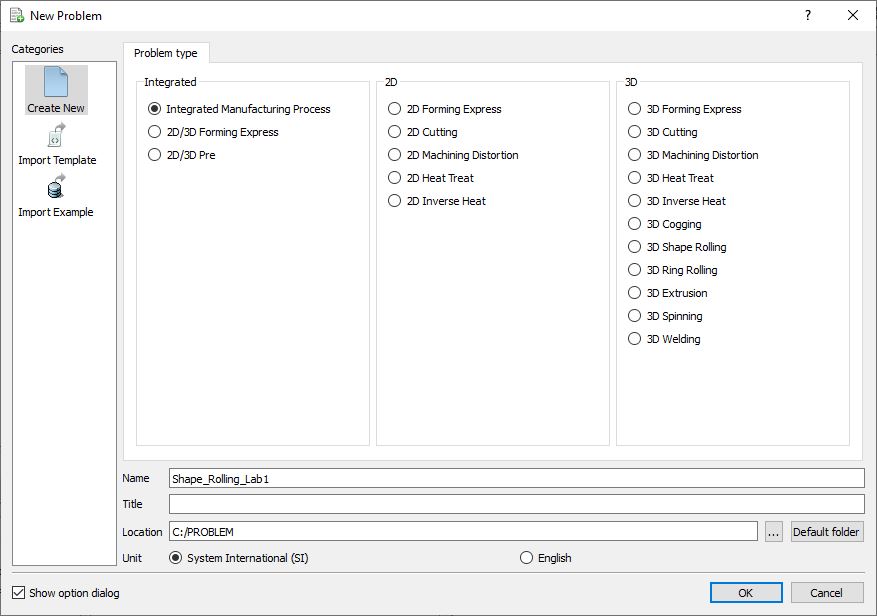

Create a new problem either by selecting File **New Problem** or by clicking the New Problem icon. The Problem Setup window will appear as shown in Fig. L1.1. Select “ Integrated Manufacturing Process “ radio button and Unit system as “SI “ using radio button. Define Problem Name as “Shape_Rolling_Lab1 “ and make sure the “Show option dialog ” check box is turned on (if we do not turn on the “Show option dialog ” check box, then we will not get the New Project dialog in MO UI). Then click on button to open a new Problem using the Deform Integrated Manufacturing Process.

Problem type selection window

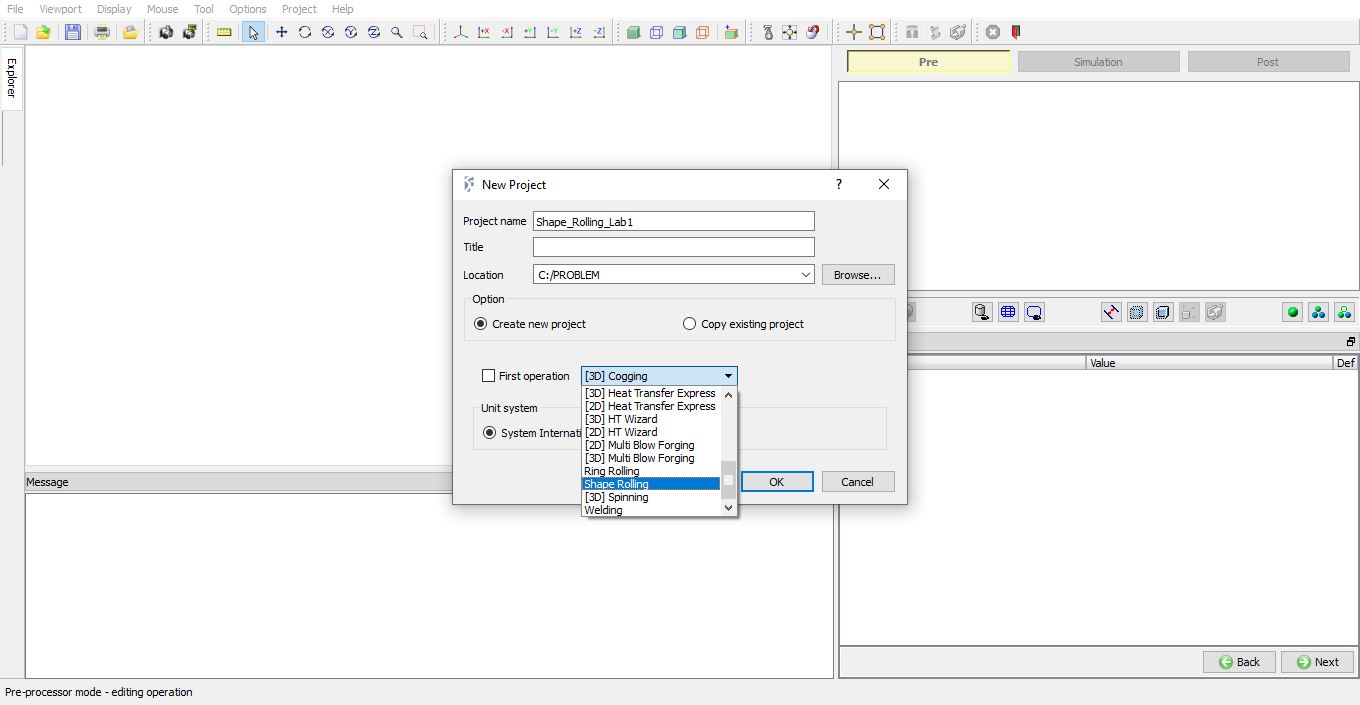

Multiple operation wizard will open with the New Project dialog as shown in Fig. L1.2., at this point user will be prompted to specify a project name (system will create a separate folder with this project name) and title for this session. In this session we will use ‘Shape_Rolling_Lab1 ’ as the project name. 3D Shape Rolling operation can also be added in “New Project” dialog (see Fig. L1.2.), in this lab we will add Shape rolling operation from Explorer operation list, so do not check “First operation” check box and “Shape Rolling” operation in “New Project” dialog. Click on to continue to open the operation.

MO Wizard opening window in MO UI

Adding Shape Rolling operation

Add one Shape Rolling operation from the Explorer Operations list. Operation can be added by clicking on Shape Rolling operation button or user can also add by drag and drop into the Operation Editor.

Adding Shape Rolling Operation

Set process conditions

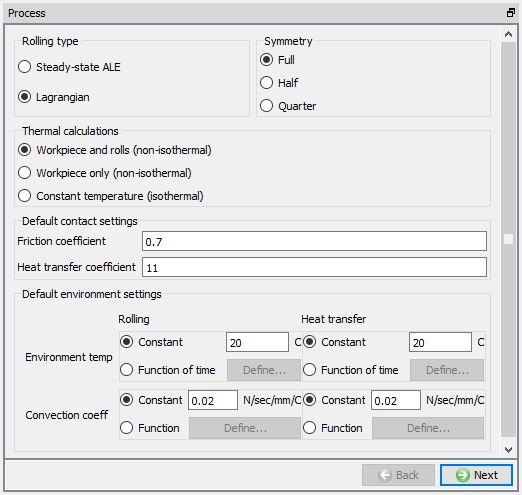

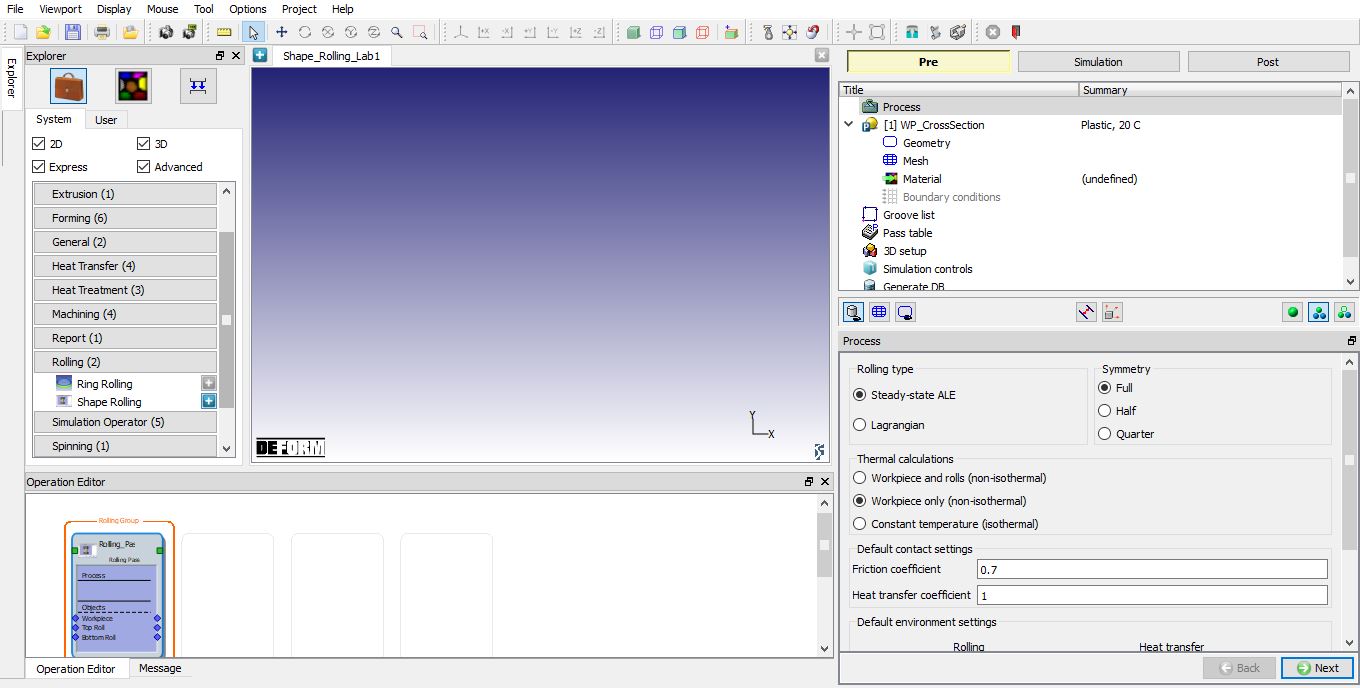

Select the rolling type as “Lagrangian “ and symmetry type as Full as we will be setting up complete object. As we are interested in temperature gradient in rolls also, select the “Workpiece and rolls (non-isothermal) “ option. Define the friction coefficient value as 0.7 and heat transfer coefficient value as 11 as shown in Fig. L1.4.

Process page

Define Workpiece

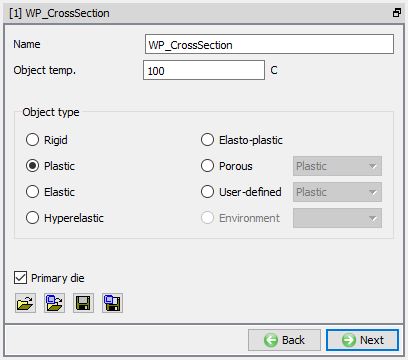

In WP_CrossSection window keep the object type as ‘Plastic ’ and specify workpiece temperature as 100°C (see Fig. L1.5.). Other option available at this stage are ‘Import Object’ from another keyword file or database. Click on to continue.

Workpiece Object Definition

Create Workpiece Geometry

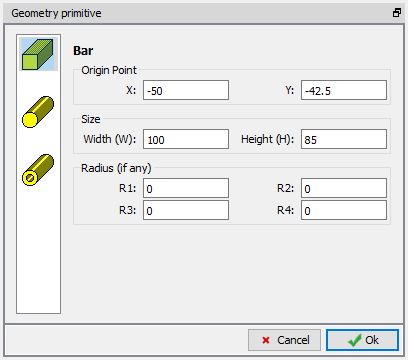

To create a rectangular bar geometry for workpiece, in Geometry page select Define Primitive. From primitive geometry window select bar and define the parameters as mentioned below. A rectangular bar is created as shown in Fig. L1.6.

Origin Point = (-50, -42.5)

Width W = 100mm

Height H = 85mm

Define Primitive

Generate Workpiece mesh

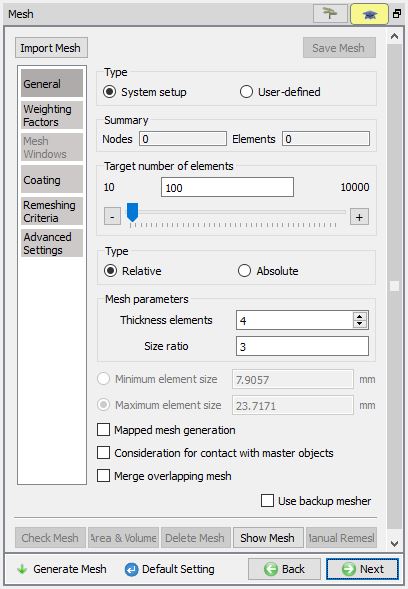

Generate the workpiece mesh with default number of elements and settings.

Workpiece mesh generation

Assigning Workpiece material

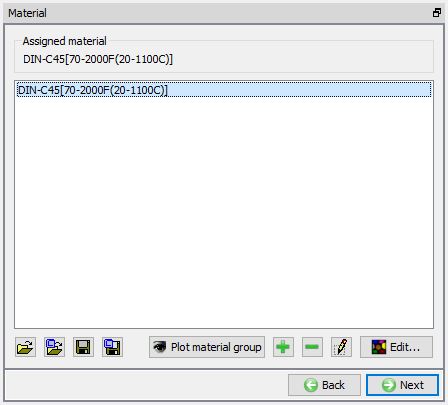

To assign material for workpiece, select the material ‘AISI-1045’ from material window. This can be done as shown in Fig. L1.8. Click on until Groove list page.

Assigning material for Workpiece

Defining Grooves

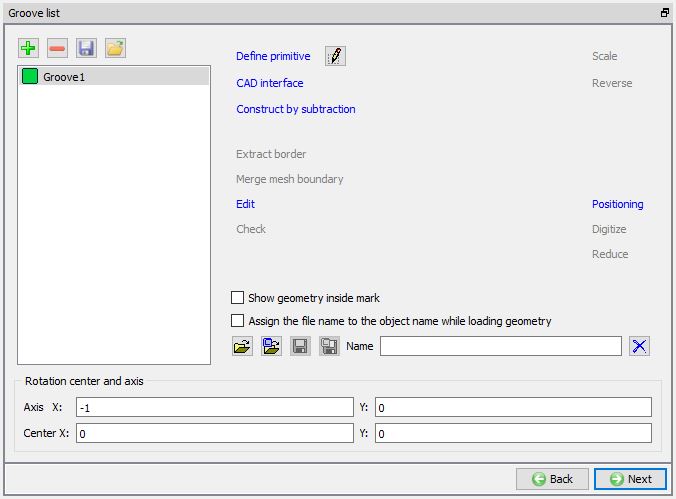

In Groove List page, we can add grooves by clicking on the button. Click once to add one groove, we will be using same grove for top and bottom roll.

Groove list page

Defining Groove1

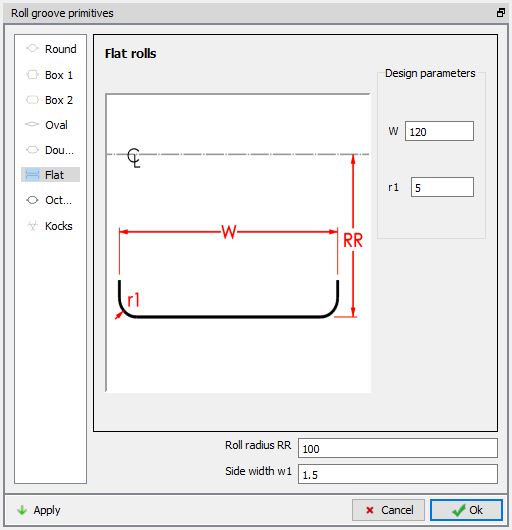

Select the First groove and click on . Roll Groove Primitive page will be opened, select Flat rolls. For roll geometry, Define width as 120, radius (r1) as 5 and Roll Radius RR as 100 as shown in Fig. L1.10.

Groove Geometry defining

Pass Table

In pass table, we will assign the groove geometries for top roll and bottom roll.

Turn on the ‘Show all rolls (for asymmetric rolling)’ check box.

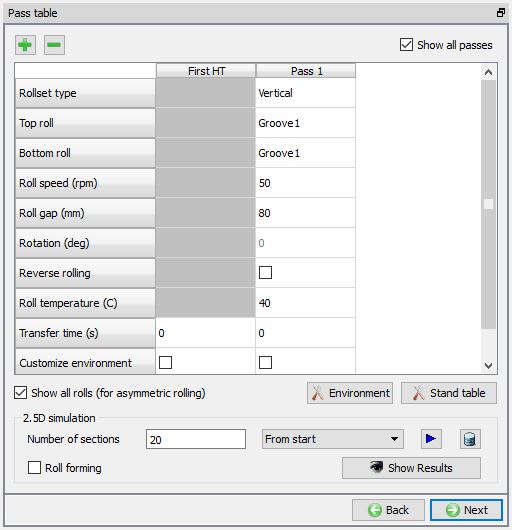

Under Pass1, select the Groove 1 for both Top roll and Bottom roll under Pass 1.

Define the Roll speed (rpm) as 50, Roll gap (mm) as 80 and Roll temperature (C) as 40. Leave other settings as default.

Pass Table

2.5d Rolling

In pass table page user can preview the rolling process using 2.5 D simulation only for ALE rolling type, so for this lab click to 3D setup page.

3D Setup

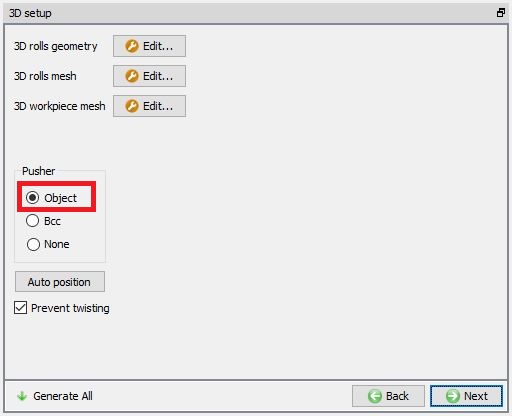

From DEFORM v12, in 3D Setup page we have Pusher object options for Lagrangian rolling operation in Stand table page. Now we can create Pusher object using Object option or we can just assign PusherBCC without creating pusher object as shown in Fig. L1.12.

Object : When we select Object option, default pusher object geometry will be created similar to workpiece cross section and Pusher object will be added in objects list.

BCC : When we select BCC option, for workpiece Pusher BCC will be added in BCC Page and movement page will be added for workpiece to define movement value same as that of Pusher. No pusher object will be added in objects list.

None : When we select None option, Pusher object / Pusher BCC will not be added to the operation.

Auto position: using this option, Workpiece will be interference positioned with Top roll in Movement direction and Pusher will be interference positioned with Workpiece in Movement direction.

In this lab select Object option for Pusher.

3D Setup page

3D Roll geometry setup

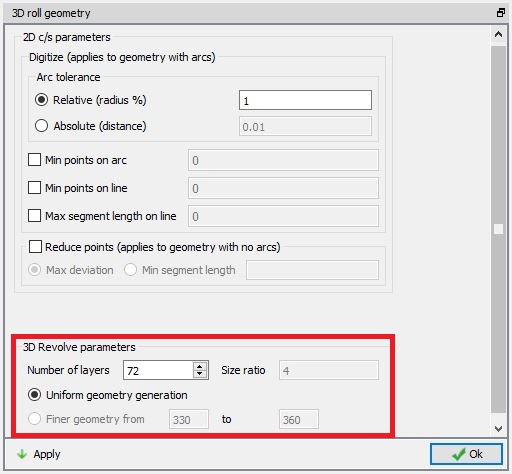

Select the button of 3D Rolls geometry. 3D Rolls geometry settings page will open, in 3D rolls Geometry settings page, define the number of layers as 72 and select the ‘Uniform geometry generation’. Then click on . Click on button to close the 3D rolls Geometry settings window.

3D Roll Geometry settings page

3D Roll mesh settings

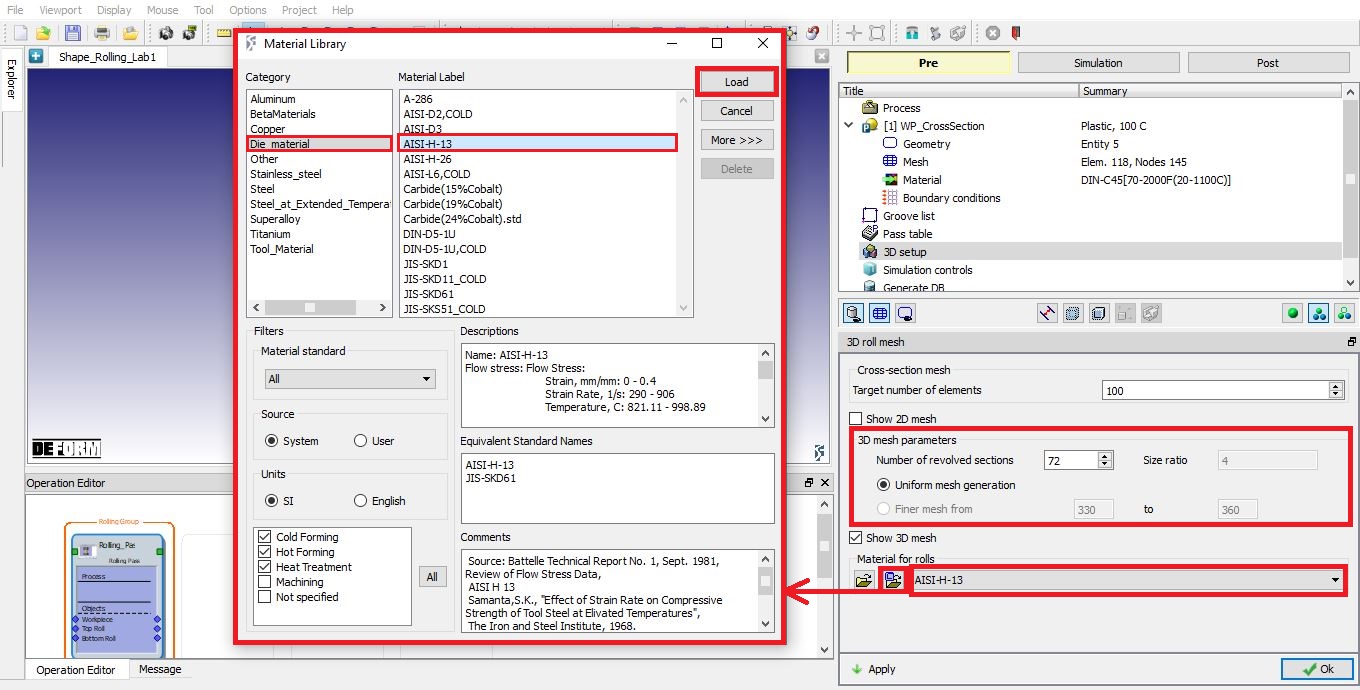

Click on button of 3D roll mesh, 3D roll mesh window will be opened with settings for 3D roll mesh. Define number of revolved sections for rolls as 72 using the “Uniform mesh generation ” option and import the die material ‘AISI-H-13 ’ from material library to assign to rolls as shown in Fig. L1.14. Click on button to generate mesh for rolls with defined settings and assign material. Click on button to close the 3D roll mesh window.

3D Roll mesh settings page

3D Workpiece setup using Brick mesh

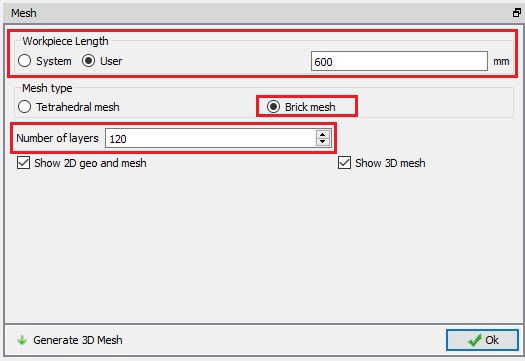

Click on button of 3D Workpiece mesh, Mesh window with 3D Workpiece mesh settings will be opened. Select user radio button for Workpiece Length and define the length as 600mm, select Birck mesh radio button and define Number of Layers as 120, as shown in the Fig. L1.15. Click on to generate 3D Workpiece mesh. Click to close the Mesh window of Workpiece mesh settings after generating the mesh.

3D Workpiece mesh settings page

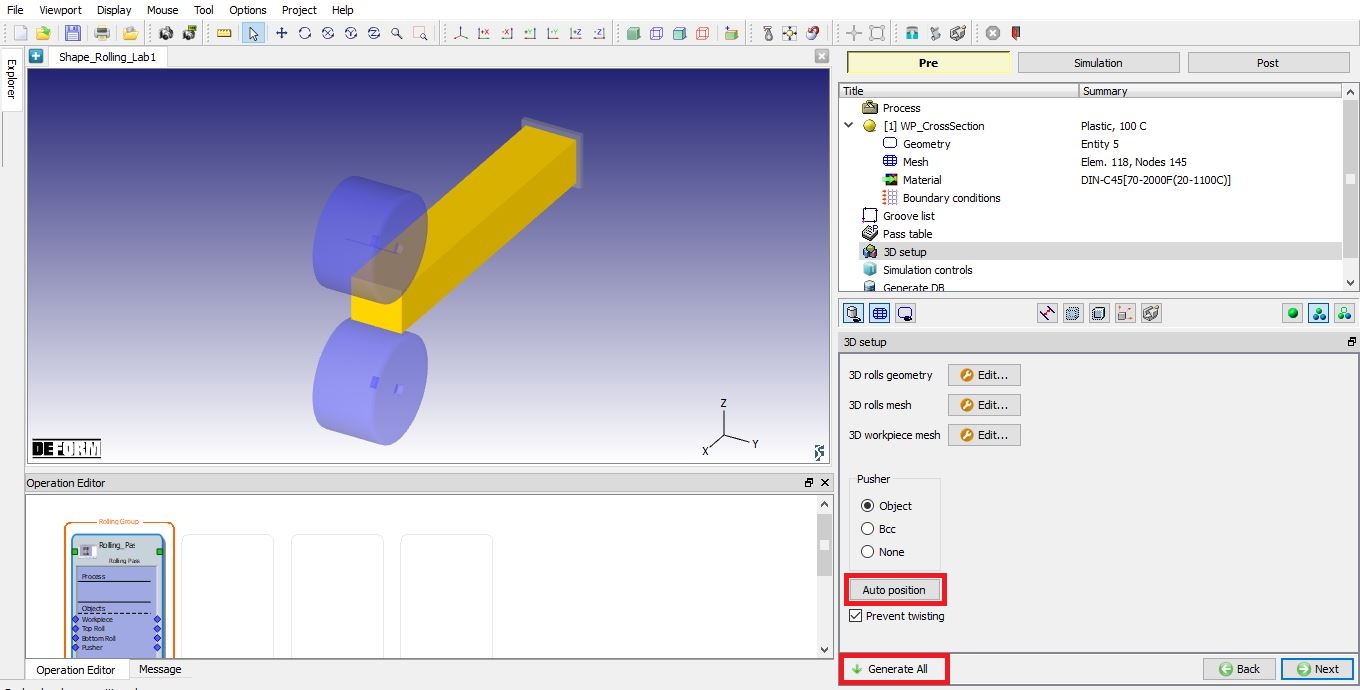

Click on button in 3D setup page and click on “Auto position” button to position the Pusher, Rolls and workpiece correctly as shown in below Fig. L1.16. Click on to continue.

Positioning the generated objects

Simulation controls

Accept the default settings in simulation controls page.

Here save the project and select the Rolling Pass operation in operation editor.

Simulation controls page

Rolling pass operation

Select the Rolling Pass operation in the operation editor.

Rolling pass operation

Stand Table

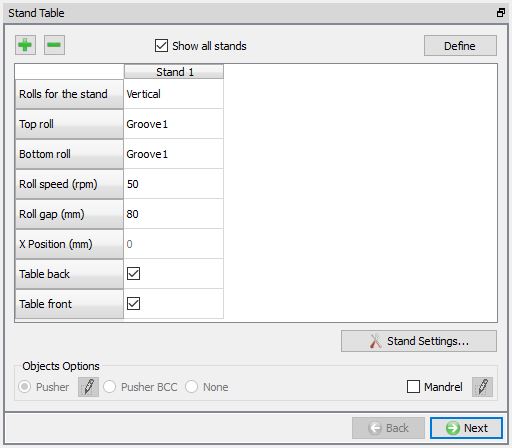

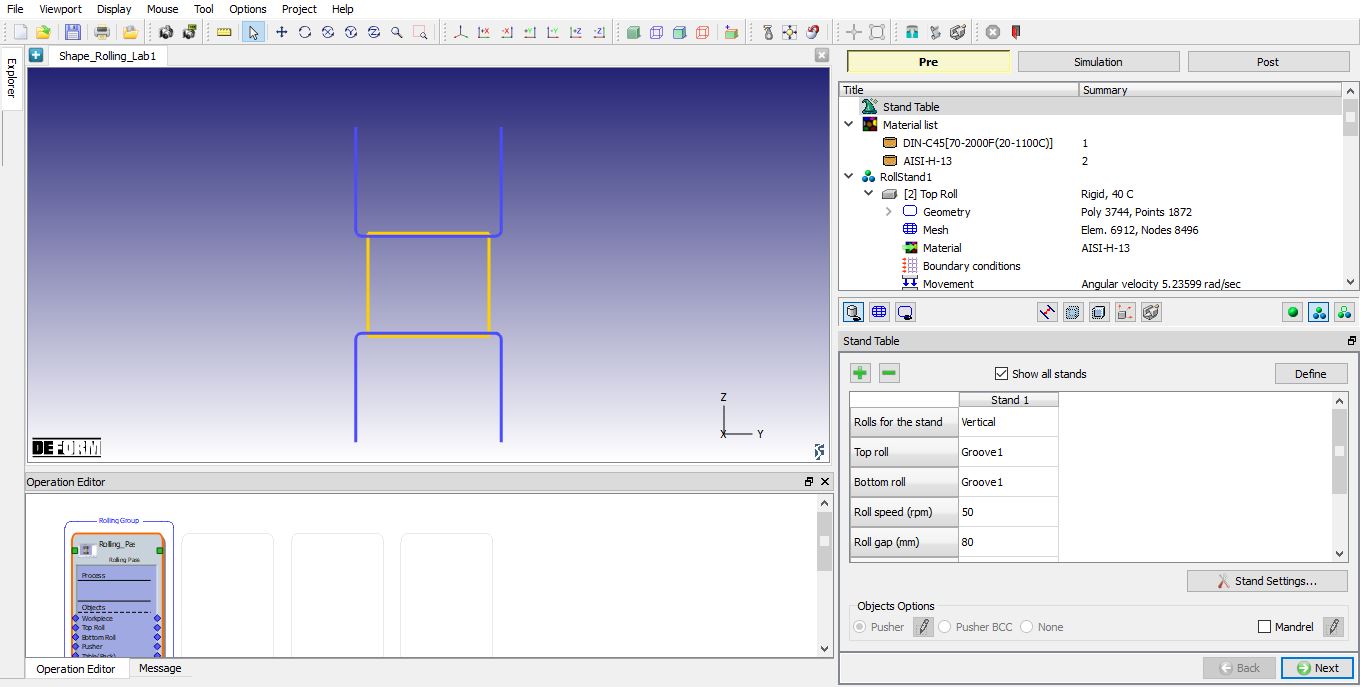

As you select the Rolling Pass operation stand table page will appear as shown in figure. We need to use the Table back and Table front in this lab, so turn on the check box as shown in the Fig. L1.19.. As mesh is generated and material is assigned for rolls, click until Table (Back) page

Stand Table page

Table back

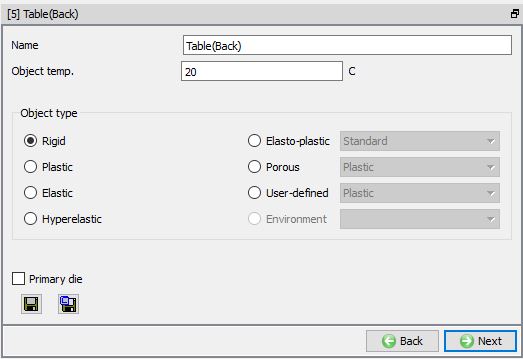

In Table back page, accept the default temperature and click on .

Table (back) page

Defining Table back geometry

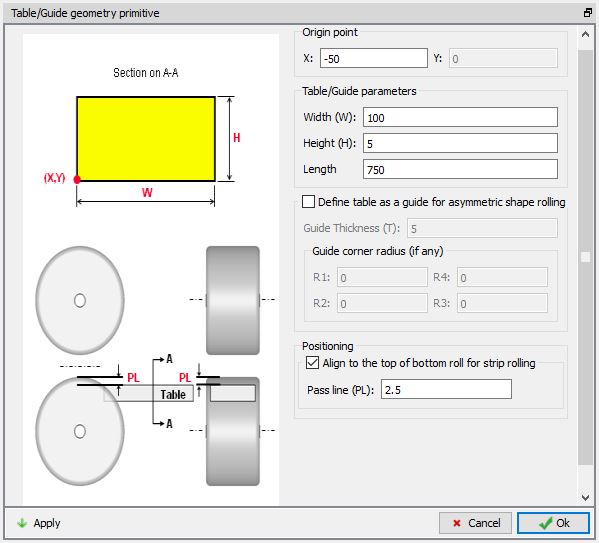

In Table back geometry page, select the ‘Define primitive’ and define the parameters as mentioned below for back Table geometry.

Origin Point X= -50mm

Width W= 100mm

Height H= 5mm

Length =750

PassLine = 2.5mm

Back Table Geometry creation

Table back Mesh Generation

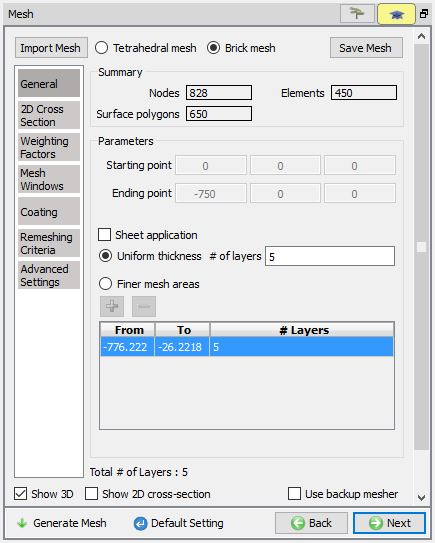

Define the Uniform Thickness number of layers as 5 and keep the rest of the settings as default as shown in Fig. L1.22. Click on to generate mesh for Table.

Back Table mesh generation

Table Back Material assigning

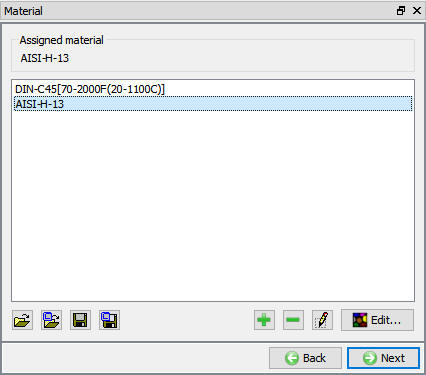

To assign material for Table back select the material ‘AISI-H-13 ’ from material window. This can be done as shown in Fig. L1.23. Click on until Table Front page.

Top Roll material Assigning

Similarly define the Table Front as Table back with same settings for the geometry, mesh and material.

Pusher object

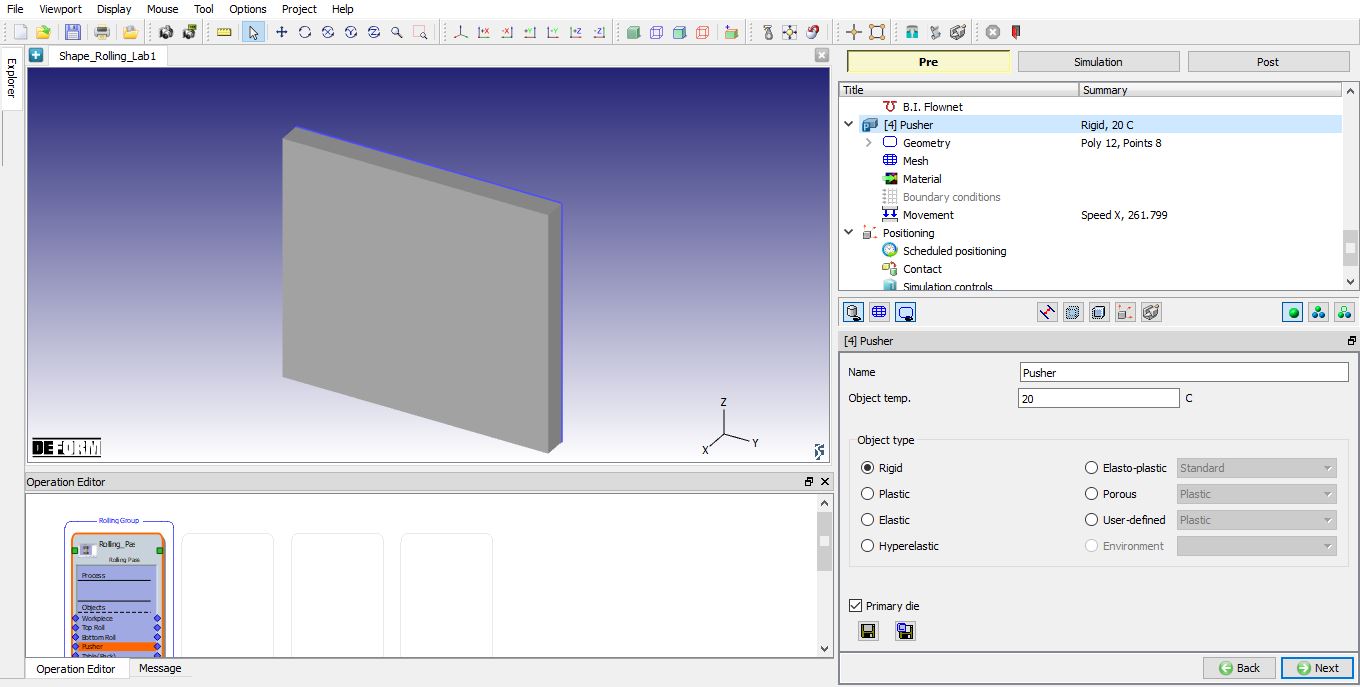

The Pusher object is created automatically using the workpiece dimensions. Click on to check the created geometry and assigned movement controls.

Pusher page

Pusher Geometry

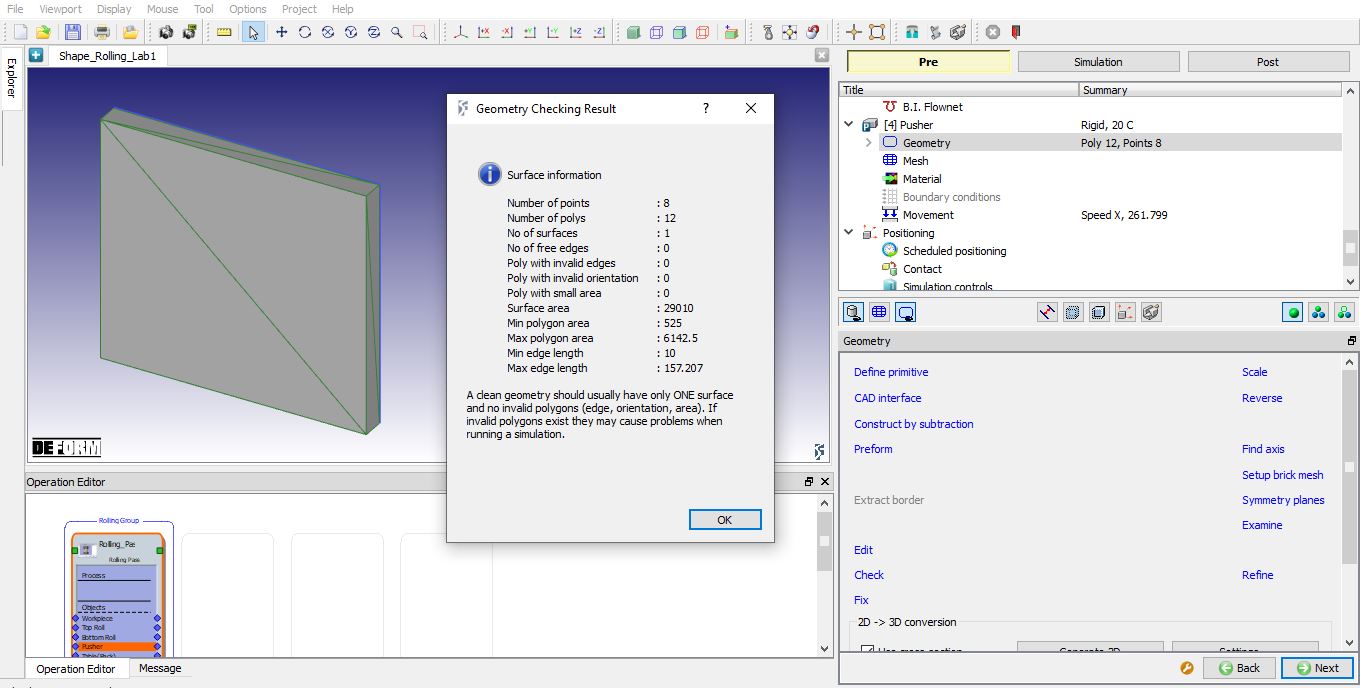

Check the default geometry using option as shown in the Fig. L1.25. Click on to Pusher movement page.

Pusher Geometry Defining

Pusher Movement Defining

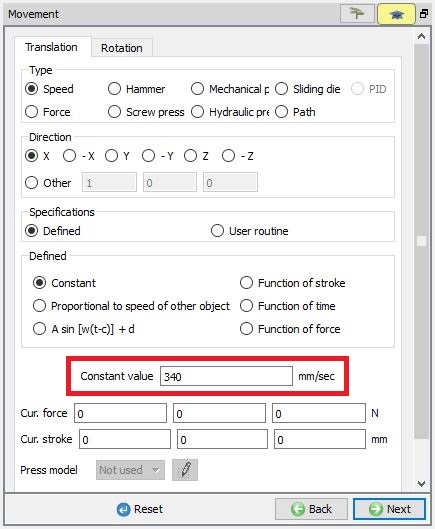

Select Speed option. Speed of the pusher should be 50 to 60% of the relative velocity of the rolls and hence assign a constant speed of 340 mm/sec for pusher. (See Fig. L1.26.) The preview of the movement can be seen by clicking on the “Preview Movement” option. Click will take you to Object Positioning page.

Pusher Movement defining

Defining Object Positioning

The objects are automatically position correctly when we click button in the 3D setup page and the Table front and table back are created at proper position automatically, so no need to position. The objects positioned should appear as shown in Fig. L1.27.

Position of the objects

Defining Contact Relations

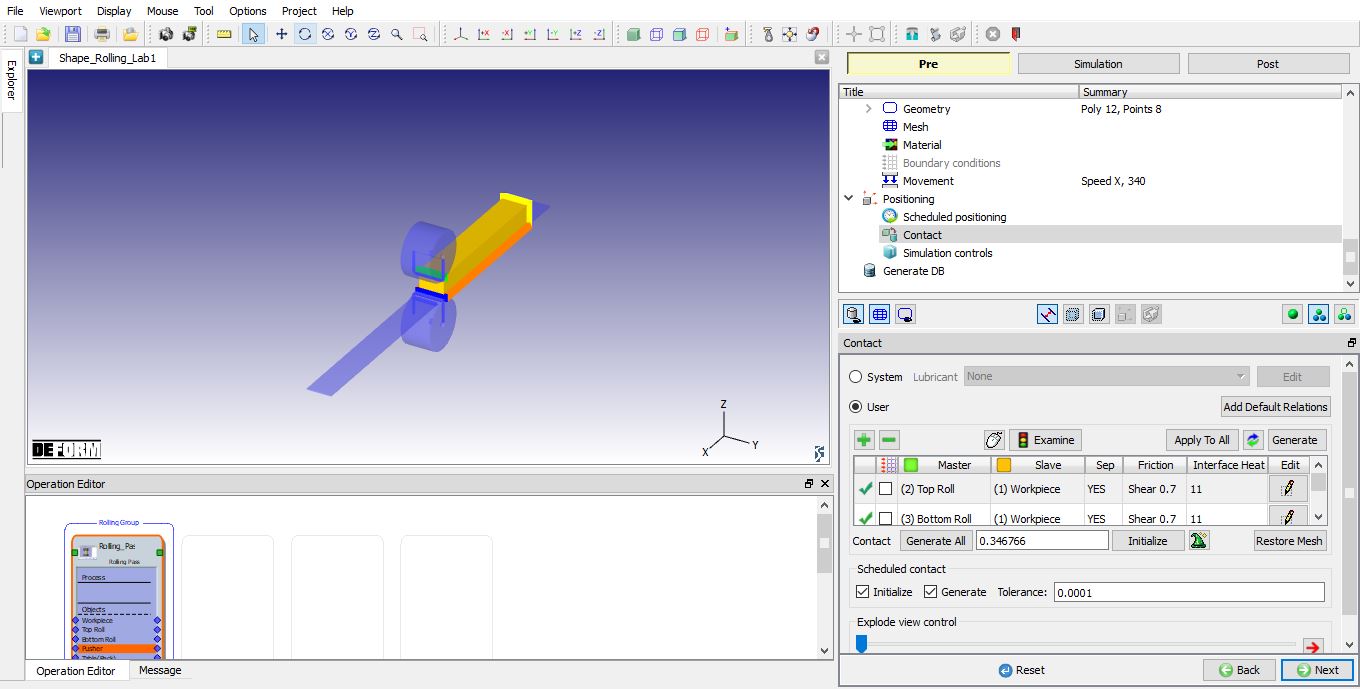

In the Contact relations page, master-slave relations will be automatically added. Define the shear friction as 0.7 and interface heat transfer coefficient as 11 (see Fig. L1.28). Click the to determine an intelligent contact tolerance and click on button to generate contacts between objects (switch to surface patch model to view the contacts generated between the objects). Click button.

Contact Relations generation

Simulation Controls page

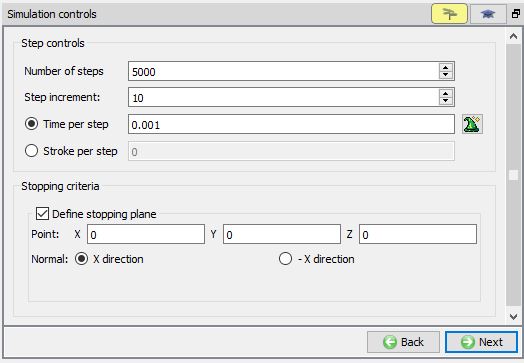

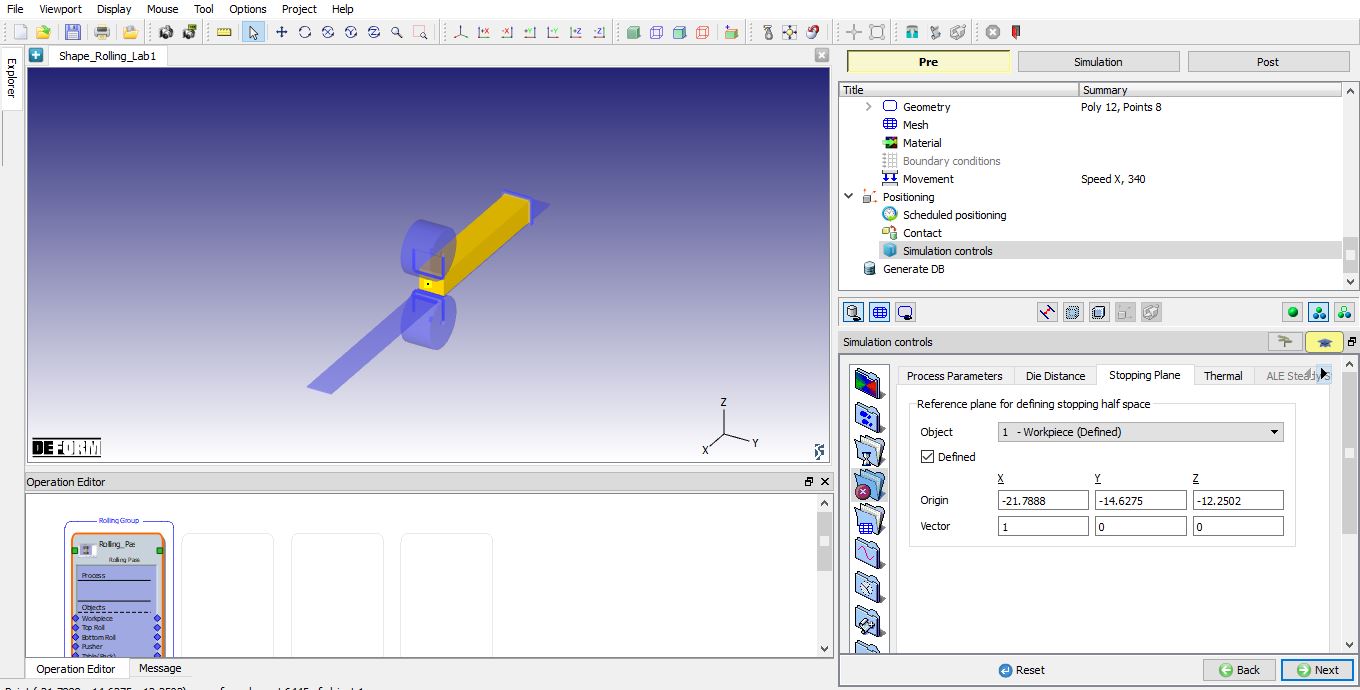

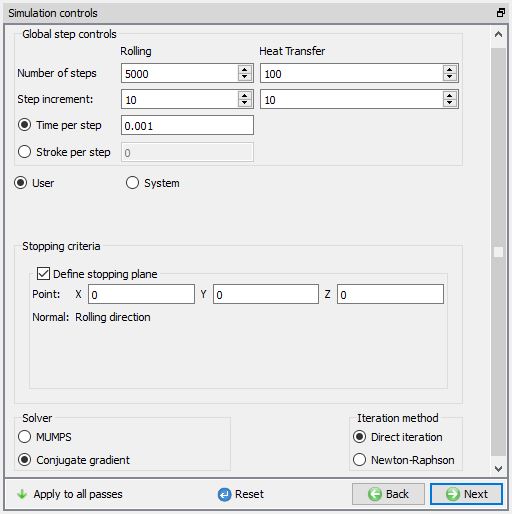

In simulation controls page set Time steps as 5000 for this simulation with a step increment to save as 10 and Time per step as 0.001 sec. For stopping criteria select stopping plane and X direction (see Fig. L1.29.). Click on the free end edge of the workpiece for stopping plane stopping controls (i.e. in +X direction) (see Fig. L1.30.)

Defining Number of Steps and Stopping criteria

Stopping plane data (Expert mode)

Generate Database

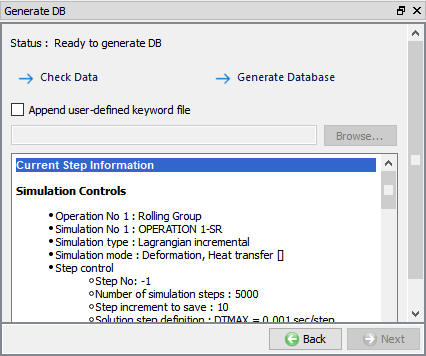

In the database generation stage user can check the data required for the analysis and proceed to generate the database (see Fig. L1.31.). For First operation of any multiple operations, user is required to generate the database.

Database Generation

Running Simulation

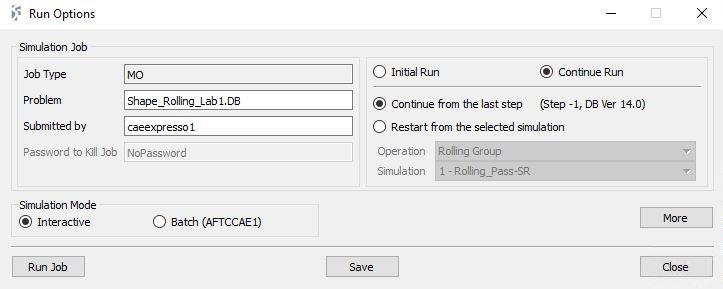

Once the database has been generated switch to the Simulation mode by clicking on button above the operation tree. Click on the action label to open the Run Options dialog as shown in Fig. L1.32. Use the default ContinueRun option to select “Continue from the last step ” option and then select the Simulation mode as Interactive radio button. Click on button to run the simulation.

To define MPI settings, click on button, Run Options window will expand and displays options to define MPI settings for simulation (max number of processors that can be defined depend on your 3D MPI license).

Run Simulation Popup

Post Processing

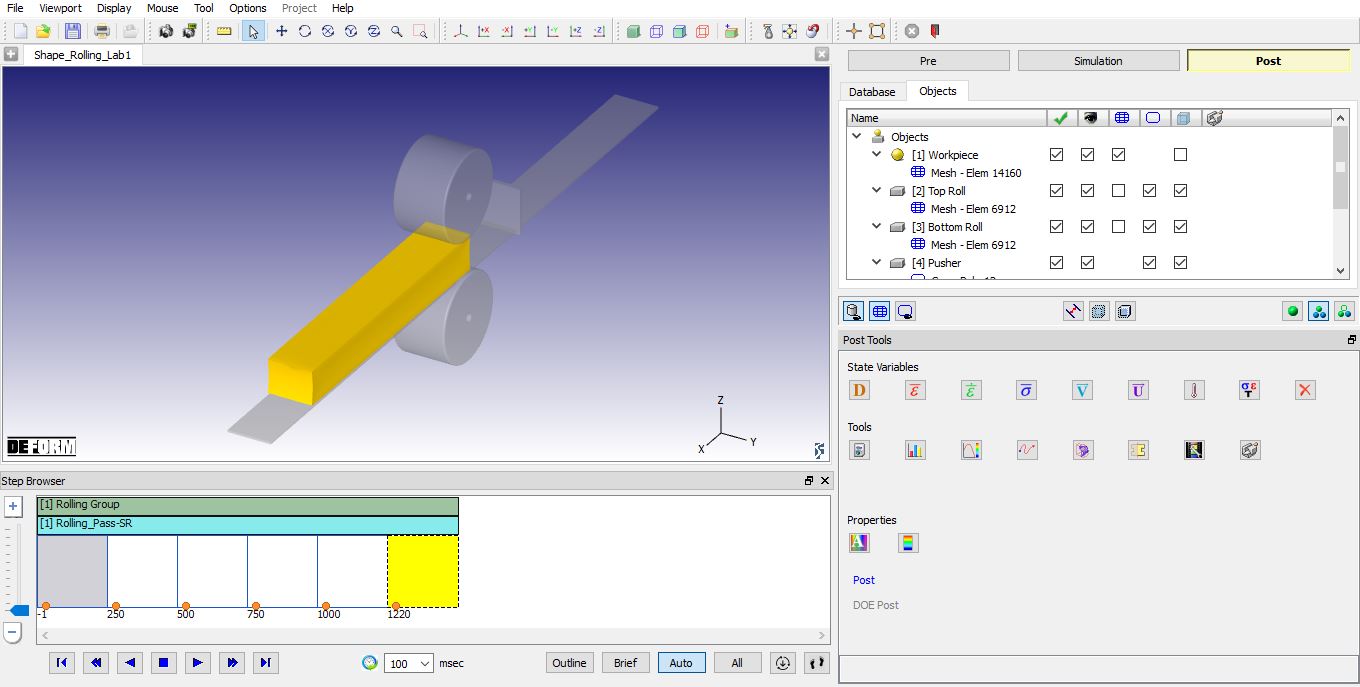

In post processor Step list below the graphic area displays step numbers available from the different operations simulated. A set of state variables available from the ‘Post’ menu can be used to review the model response.

Post Processing wizard

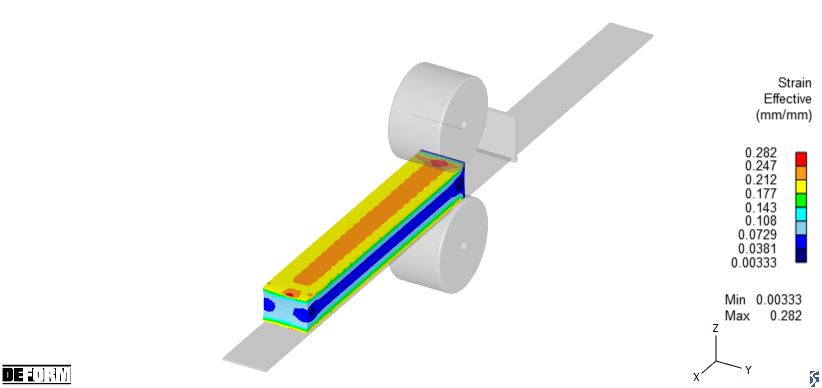

Strain Effective plot

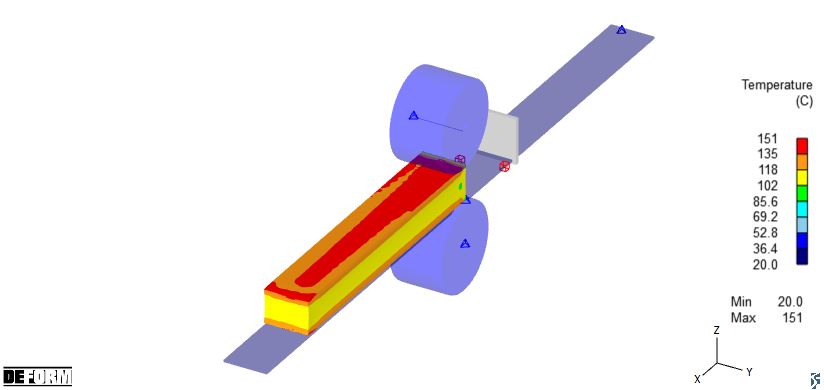

Temperature plot
