Setting up 2D Fracture lab with Element deactivation method.

In this lab, we will demonstrate how to setup Fracture element deactivation method using 2D Chevron example keyfile.

2.1 Introduction

2.2. Creating a New problem

2.2.1. Adding 2D Forming operation

2.2.2. Import Chevron keyfile

2.2.3. Modifying the material properties

2.2.4. Selecting Fracture type

2.2.5. Generating Database

2.2.6. Running simulation

2.2.7. Post Processing

Introduction

Generally, fracture element deletion will be used for crack propagation study in DEFORM system. Due to the difficulty in brick remeshing, fracture element deletion currently does not support 3D brick mesh.

Fracture element deactivation is a new method to study crack propagation. It will deactivate an element instead of deleting it when its damage reaches the critical value of its material. It allows simulation to continue without remeshing or with less remeshing in forming processes. So, fracture element deactivation can support 3D brick mesh, 3D tetrahedral mesh and 2D mesh to predict crack onset & propagation.

Creating a New problem

On a Windows machine, go to the button, select DEFORM-v1x.xxx (.xxx indicates version number E.g. v14.0.2) and select DEFORM GUI Main v1x.x from the menu. The DEFORM GUI Main window will appear.

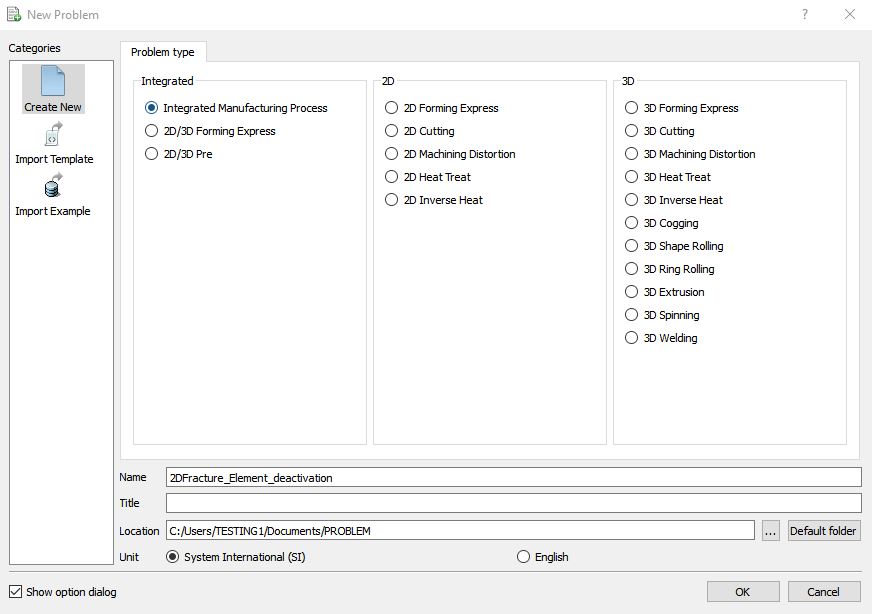

Create a new problem either by selecting File **New Problem** or by clicking the New Problem icon. The Problem Setup window will appear as shown in Fig. 2DFRCL2.1. Select “ Integrated Manufacturing Process “ radio button and “SI “ radio button in Unit field. Define Problem Name as “2DFracture_Element_deactivation “ and make sure the “Show option dialog ” check box is turned on (if we do not turn on the “Show option dialog” check box, then we will not get the New Project dialog). Then click on button to open a new problem using the Deform Integrated Manufacturing Process.

Problem type selection window

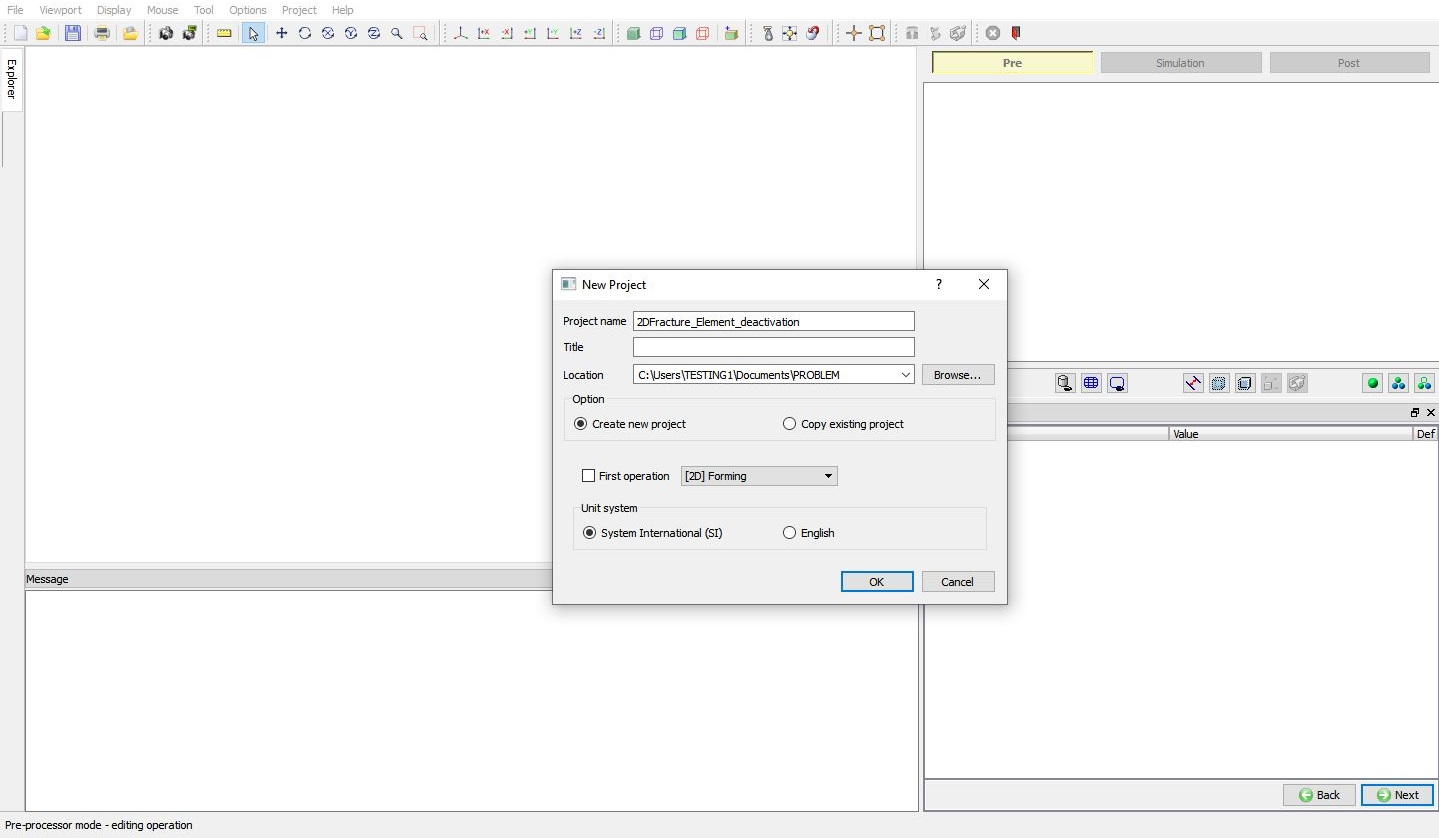

Multiple operation wizard will open with the New Project dialog as shown in Fig. 2DFRCL2.2., at this point user will be prompted to specify a project name (system will create a separate folder with this project name) and title for this session. In this session we will use “2DFracture_Element_deactivation ” as the project name. 2D Forming operation can also be added in “New Project” dialog (see Fig. 2DFRCL2.2..), but in this lab we will add 2D Forming operation from operations list in Explorer, so do not check “First operation” check box in “New Project” dialog. Click on to continue to open the operation.

Project definition in New Project window from MO.

Adding 2D Forming operation

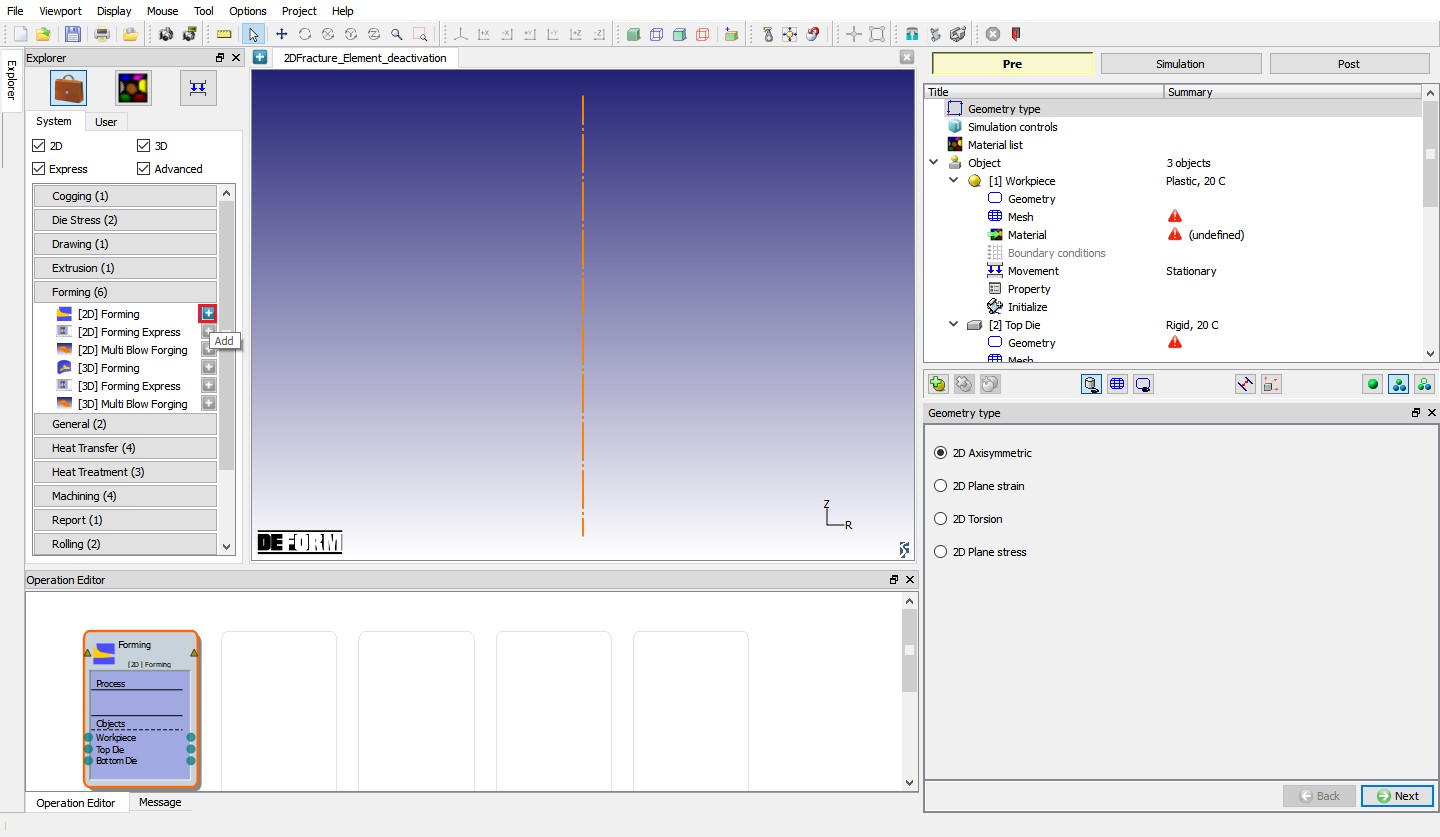

Add one 2D Forming operation from the Explorer Operations list. Operation can be added by clicking on button adjacent to 2D Forming in Explorer or user can also add by drag and drop into the Operation Editor (see Fig. 2DFRCL2.3.). As we add operation, Process page will be opened in the properties area.

Adding 2D Forming Operation from explorer.

Import Chevron keyfile

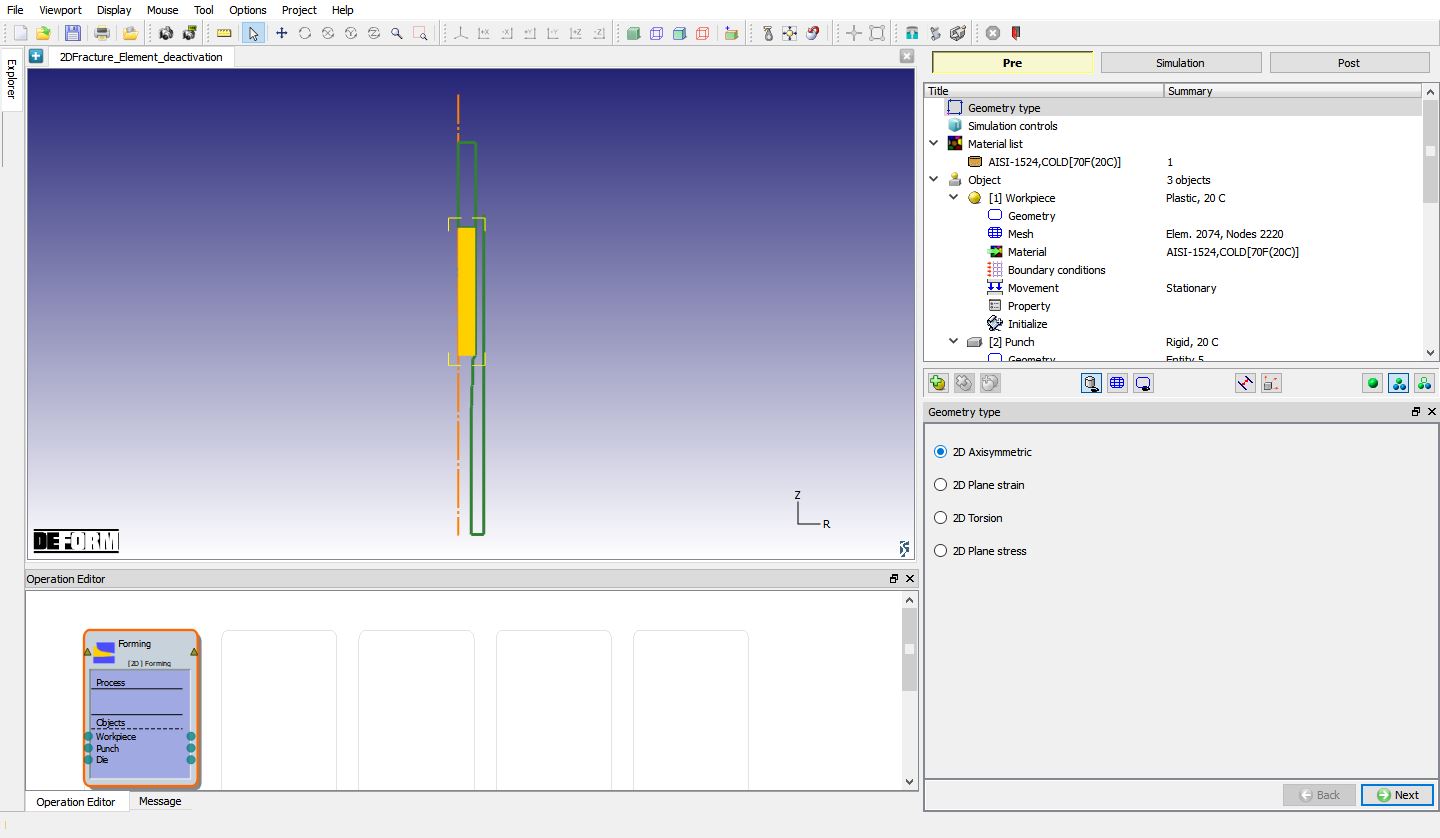

Import “Chevron_SI.KEY ” file from DEFORM Installation 2D\2D_Examples\SI\Fracture folder using File“Import Keyfile ” option. Imported Chevron example keyfile is as shown in Fig. 2DFRCL2.4.

2D Chevron example

Modifying the material properties

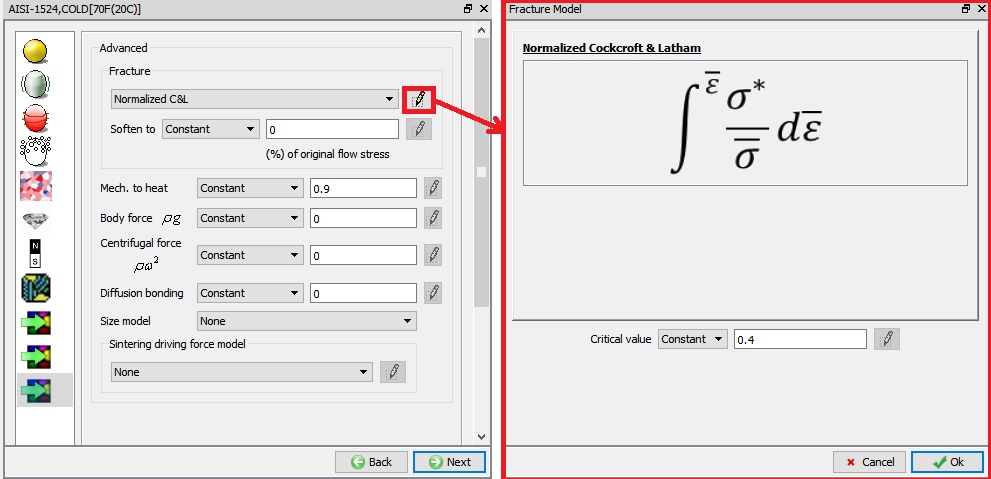

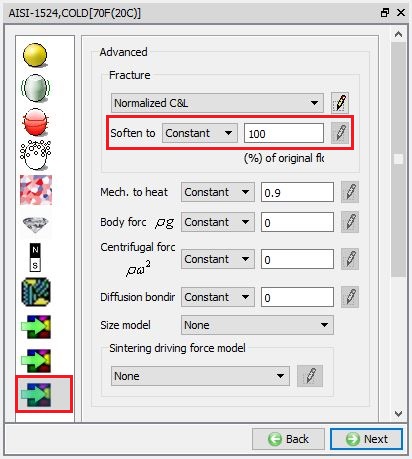

In operation tree, select AISI-1524,COLD[70F(20C)] under material list to display the material properties. From material properties, select the Miscellaneous properties tab. We can observe that Normalized C&L is selected as Fracture model, click on and observe the critical value defined. Critical value defined is 0.4 as shown in Fig. 2DFRCL2.5. We can define the softening percentage of flow stress when Damage SV of an element reaches the material’s fracture model’s critical value. Define the Soften to as constant value 100 as shown in the Fig. 2DFRCL2.6.

Critical value of Damage to initiate fracture.

Defining softening % of flow stress

Selecting Fracture type

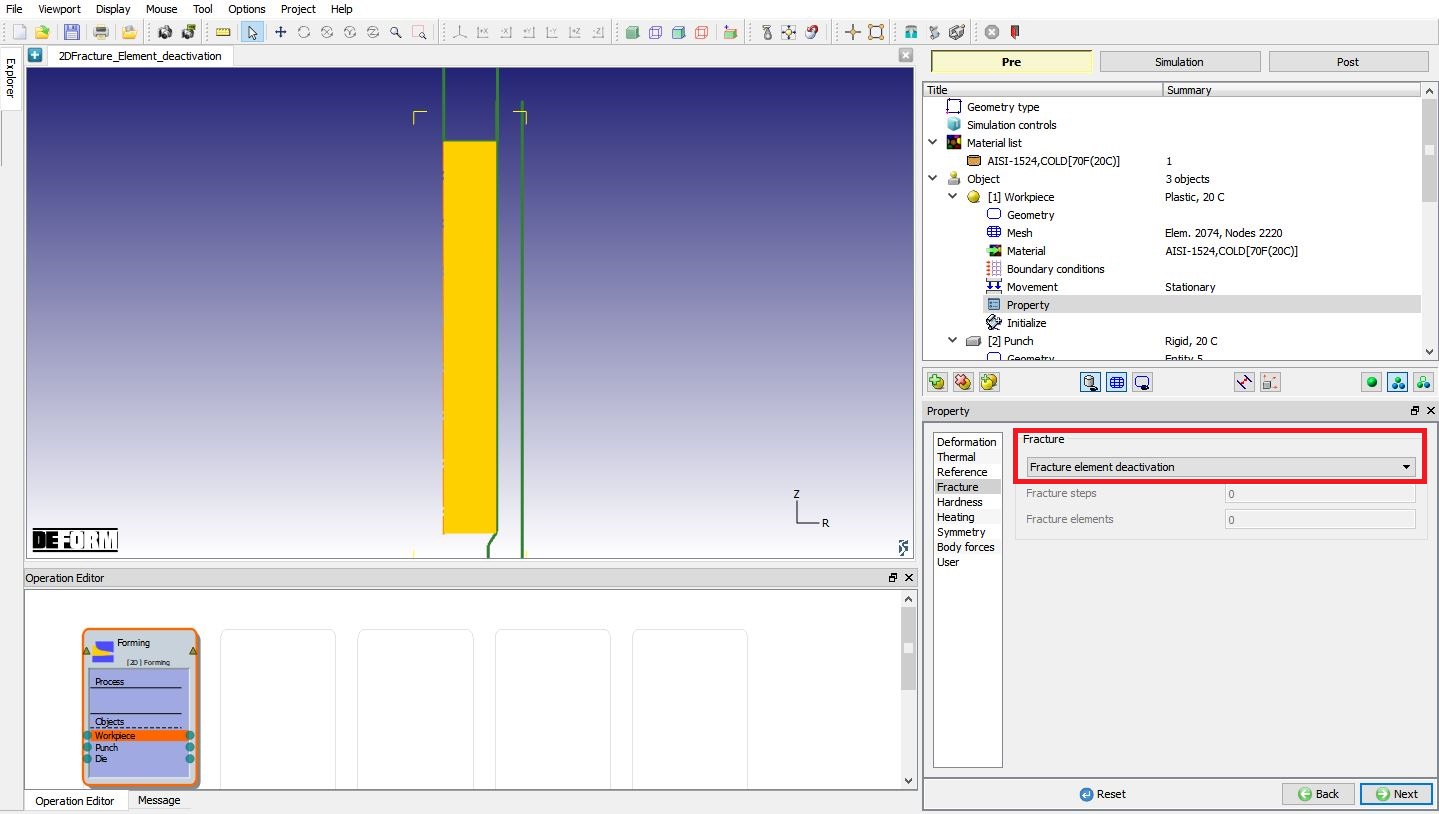

To select “Fracture element deactivation ” type, go to Workpiece Object Properties page. Under Fracture tab, select “Fracture element deactivation ” type from Fracture pulldown menu as shown in Fig. 2DFRCL2.7.

Selecting Fracture type

Generating Database

In operation tree, select “Generate DB ”, then click on button to have the program check to see if anything was missed in the problem setup. During the checking process, messages in the red color signify data that needs to be fixed before a simulation can be run (such as when you forget to define any material data).

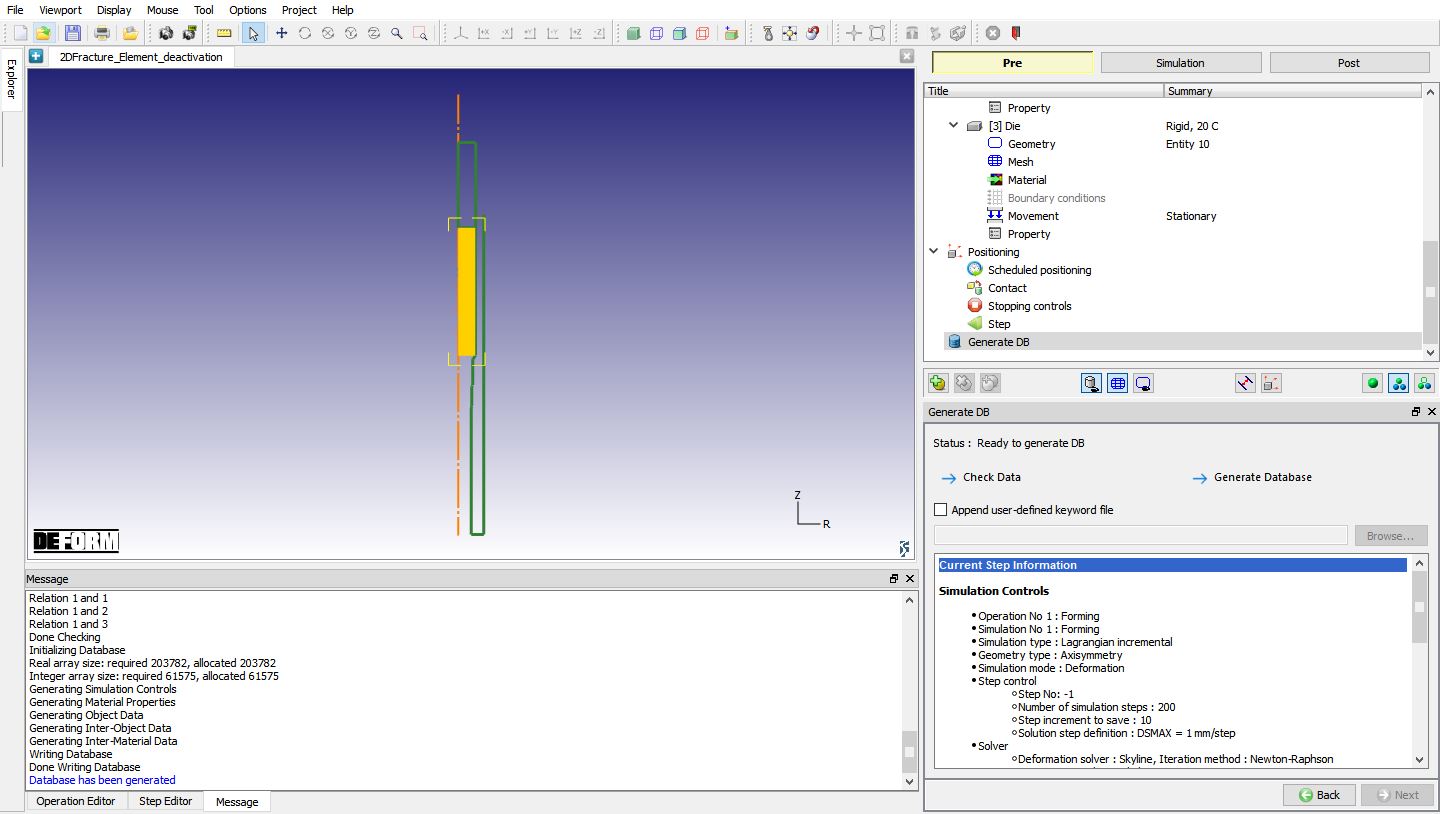

Click on button to generate the database as shown in Fig. 2DFRCL2.8.

Generating Database

Running simulation

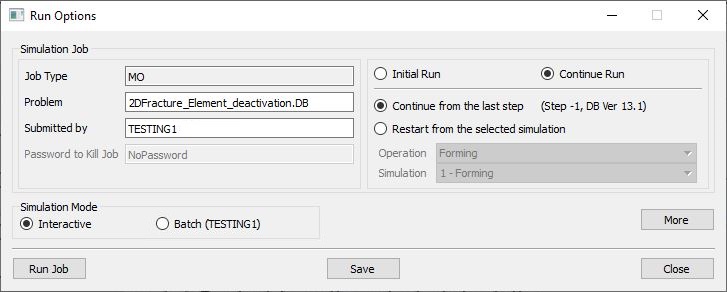

Once the database has been generated, switch to the Simulation mode by clicking on button above the operation tree. Click on the action label to open the Run Options dialog as shown in Fig. 2DFRCL2.9. Use the default Continue Run option to select “Continue from the last step ” option and then select the Simulation mode as Interactive and click on button to run the simulation.

Run Options Popup

The progress of the simulation can be monitored as it is running by looking at the Simulation Message tab and Simulation Graphics from the Graphics display region in Simulation mode. If option is checked in Simulation Message tab, which is the default setting, the Message file will refresh automatically.

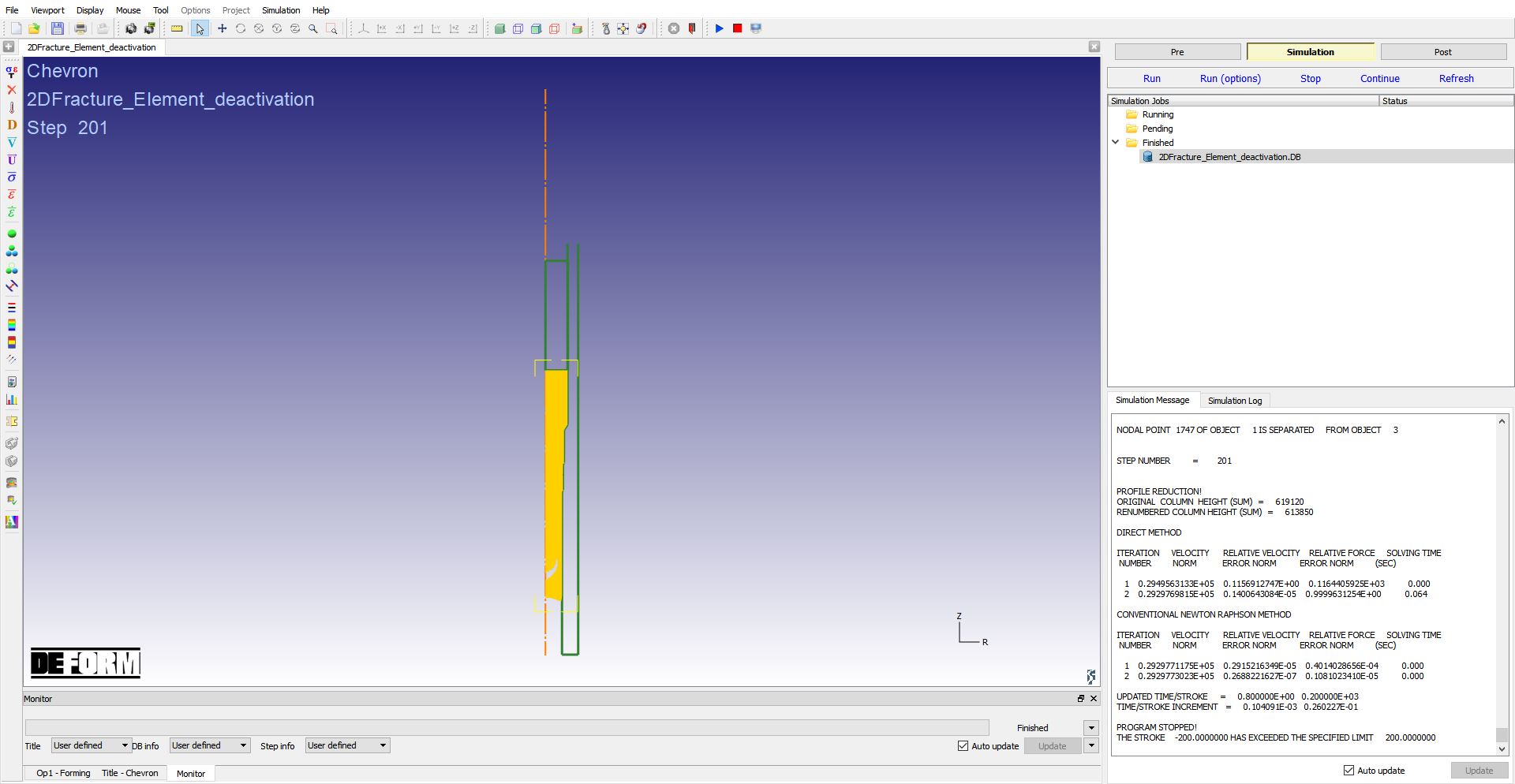

The Message file provides information about which simulation step the simulation is currently on and information dealing with how well the simulation is running as shown in Fig. 2DFRCL2.10.

Simulation mode

Post Processing

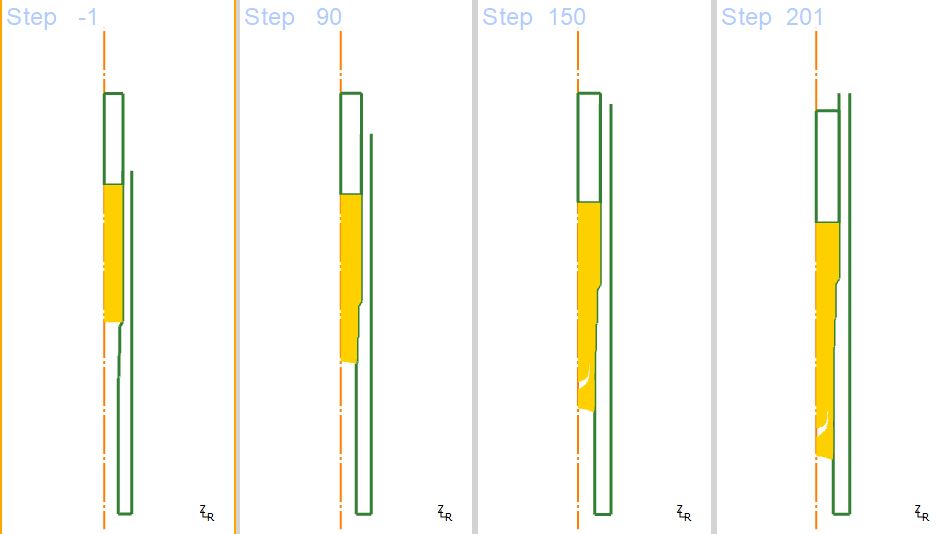

After the simulation is completed, click on tab to visit MO post processor. Play the animation to see the crack onset & propagation from mesh, see Fig. 2DFRCL2.11.

Onset and Propagation of crack.

MO Post mode after simulation is completed.

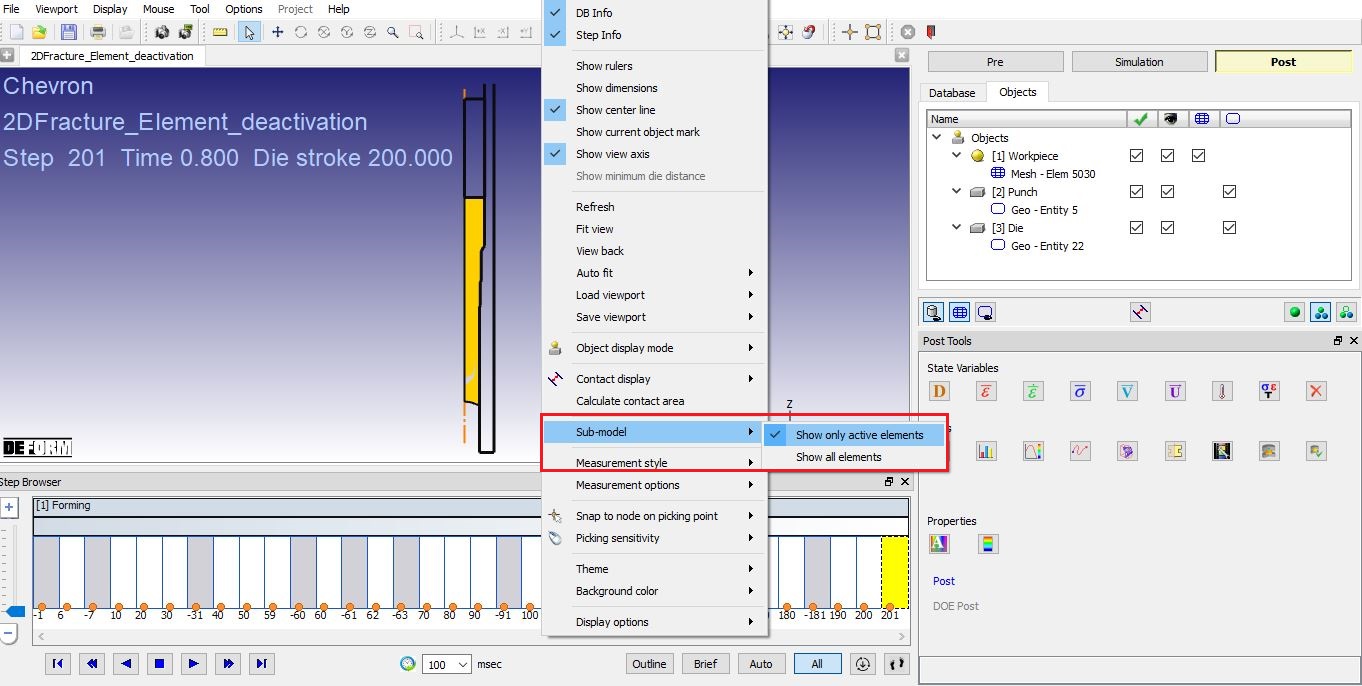

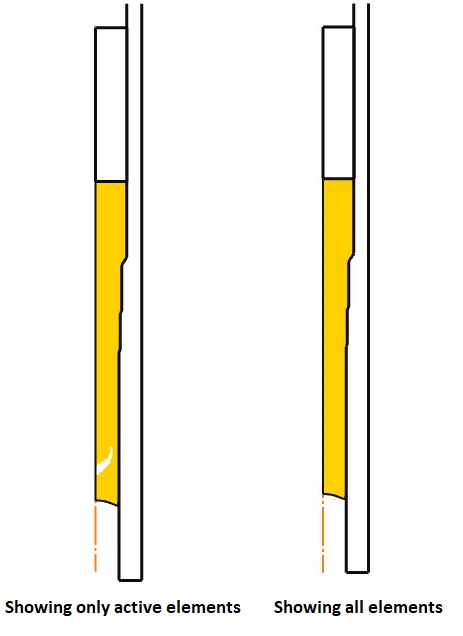

By default, only active elements of the model will be displayed. To view all the elements of the model, right click in Display area select “Sub-model ” from RMB popup menu select “Showall elements ” option (Fig. 2DFRCL2.12.) to see all elements of workpiece as shown in Fig. 2DFRCL2.13.

Sub model options workpiece display

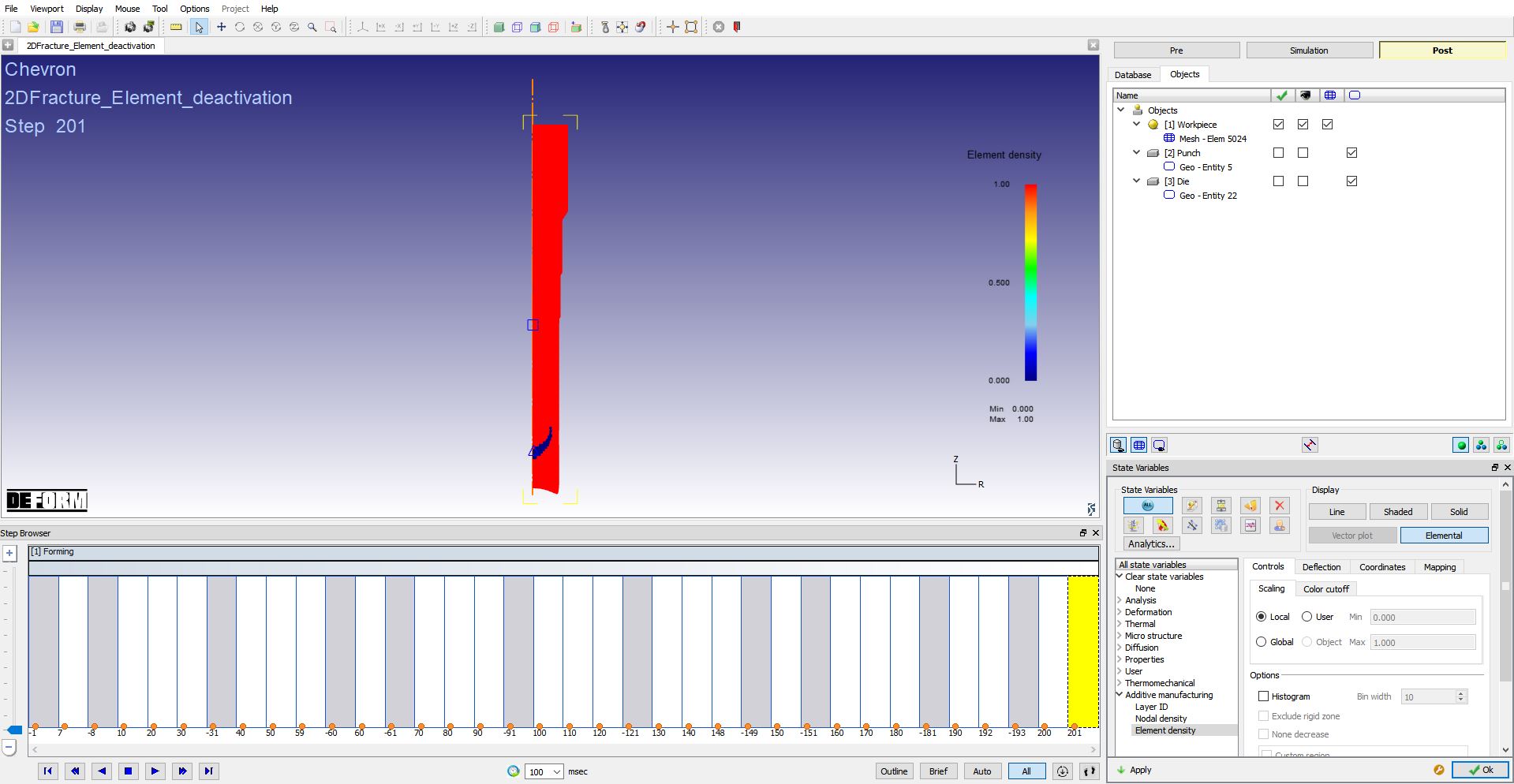

Click on State variable icon, select All button and Under Additive manufacturing menu plot “Element density ” variable. We can observe that the element density is 0 for deactivated elements and element density of other elements are 1. Using ‘Elemental’ display type it will be more clear, so select “Elemental ” Display type as shown in Fig. 2DFRCL2.14.

Element density state variable plot with Elemental display
